Our Products
>
General Purpose Press
>
NS2 Straightside Press
General Purpose Press
NS2 Straightside Press

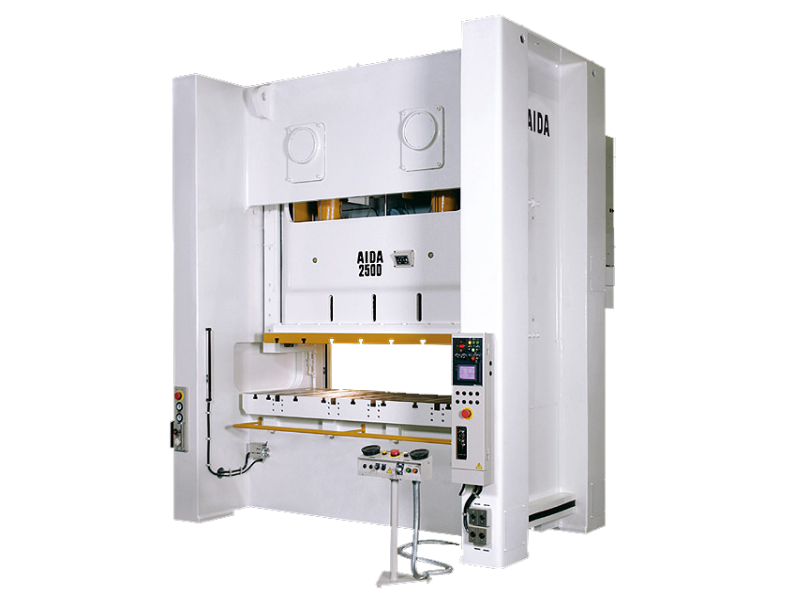

A unitized straightside frame with better rigidity
More precise bottom dead center
A forced circulation lubrication system, better cooling effects
share
Share
textsms
Ask AIDA
Product Specification
Outline
A unitized straightside frame with better rigidity.
More precise bottom dead center.
A forced circulation lubrication system, better cooling effects.
Controlling thermal deformation of the frame and improving the accuracy of bottom dead center.
Extend the die life and expand the forming range.
Link motion, perfected by AIDA through decades of experience and engineering, expands the range of forming.
Reduce the impact on the die, and reduce the noise.
Higher resistance to eccentric loads.
Advantages
High-precision, high added-value product processing
A unitized straightside frame structure without gap deformation, forced recirculating lubrication system, the space between guides and shafts made smaller to improve accuracy, reduce thermal deformation and protect environment
Full length slide guides-- The guides in the center of slides promote motion accuracy
Specification
Model
NS2-1600
NS2-2000
NS2-2500
NS2-3000
(1)
(2)
(1)
(2)
(1)
(2)
(1)
(2)
Capacity
kN
1600
2000
2500
3000
Tonnage Rating Point
mm
6
7
7
6
Stroke Length
mm
130
200
150
250
170
280
200
300
Continuous SPM (No Load)
spm
40~90
30~60
35~75
25~50
25~60
20~40
20~50
15~35
Die Height
mm
400
450
450
500
450
550
600
650
Slide Adjustment
mm
100
110
120
130
Slide Area: (a1 x b1)
mm
1500 x 580
1850 x 650
2100 x 700
2400 x 900
Bolster Area: (a2 x b2)
mm
1800 x 760
2150 x 840
2400 x 920
2600 x 1200
Bolster Thickness
mm
165
170
180
200
Location Of Anchor Bolt
(a4)
mm
2270
2620
2920
3260
(b41, b42)
mm
650, 650
700, 700
750, 750
825, 825
Installation Dimensions
(a5 x b5)
mm
2530 x 1650
2900 x 1750
3200 x 1850
3500 x 2100
(b51, b52)
mm
825, 825
875, 875
925, 925
1050 x 1050
Bed Hole Dimensions (L.R. x F.B.)
mm
1600 x 320 with ribs
1600 x 320
1900 x 380 with ribs
1900 x 460
2200 x 400 with ribs
2200 x 480
2390 x 440 with ribs
2390 x 520
Overall Height (h2)
mm
3215
3300
3610
3710
3980
4135
4360
4460
Bolster Surface Height (h1)
mm
900
1000
1100
1150
Dimensions Of Side Opening (b2 x h3)
mm
780 x 325
780 x 375
860 x 365
860 x 415
940 x 355
940 x 530
1220 x 530
1220 x 580
Range Where Upper Die Can Be Installed (a3)
mm
1520
1870
2120
2420
Main Breaker Capacity (380/415V, 50/60Hz)
A
50
75
100
125
Maximum Upper Die Weight
kg
800
1200
1650
2300
Approximate Press Weight
t
21
29
37
45
Required Air Pressure
MPa
0.5
0.5
0.5
0.5
